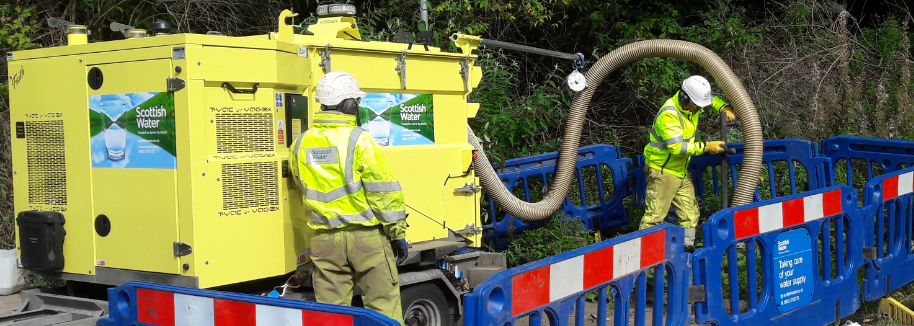

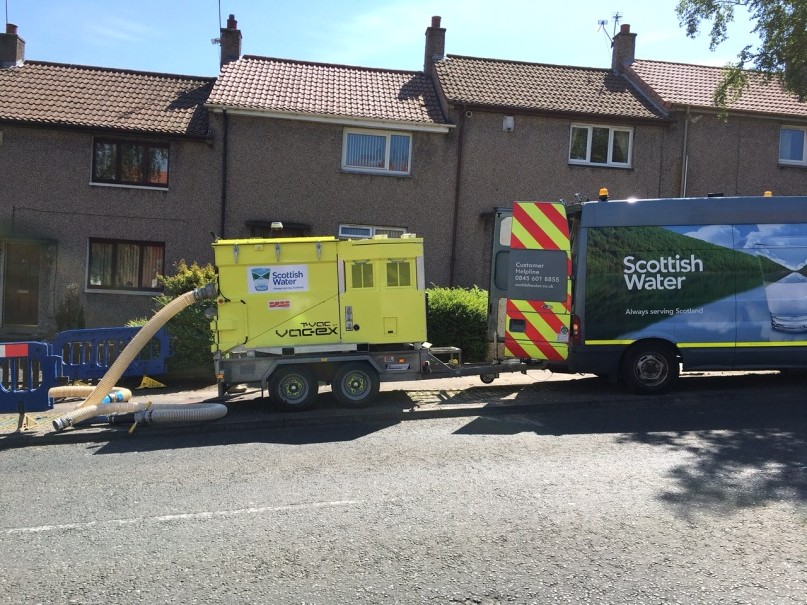

The T-VAC was originally designed for Scottish Water back in 2016 as a solution to an ongoing issue, they needed a Vacuum Excavation unit that suited their needs. The initial decision was made to allow the same T-VAC to be either trailer or static mounted.

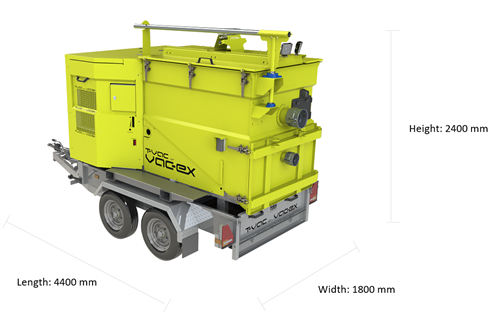

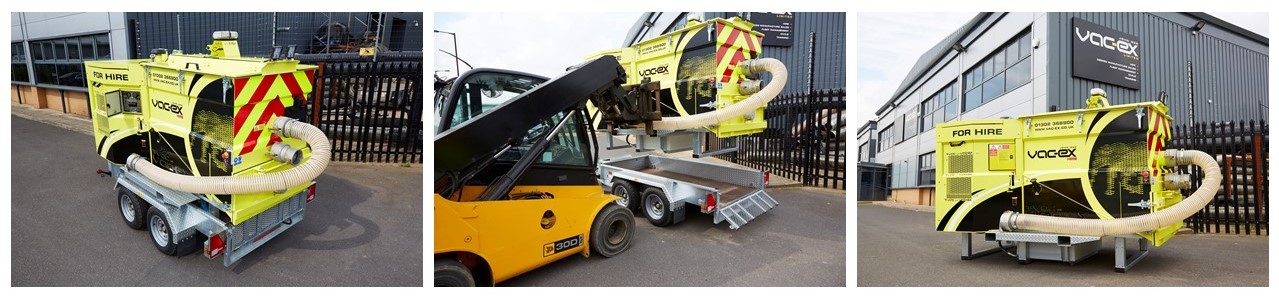

With a tare weight of 2000 kg, the T-VAC static unit can either be transported to site using a flat bed truck or trailer.

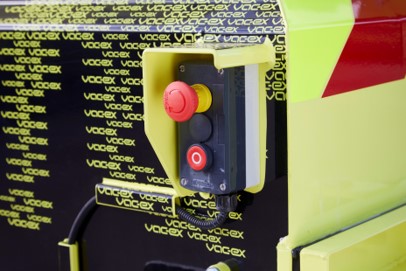

Located both sides of the unit, for quick and easy reach. Umbilical E-Stop is also an option.

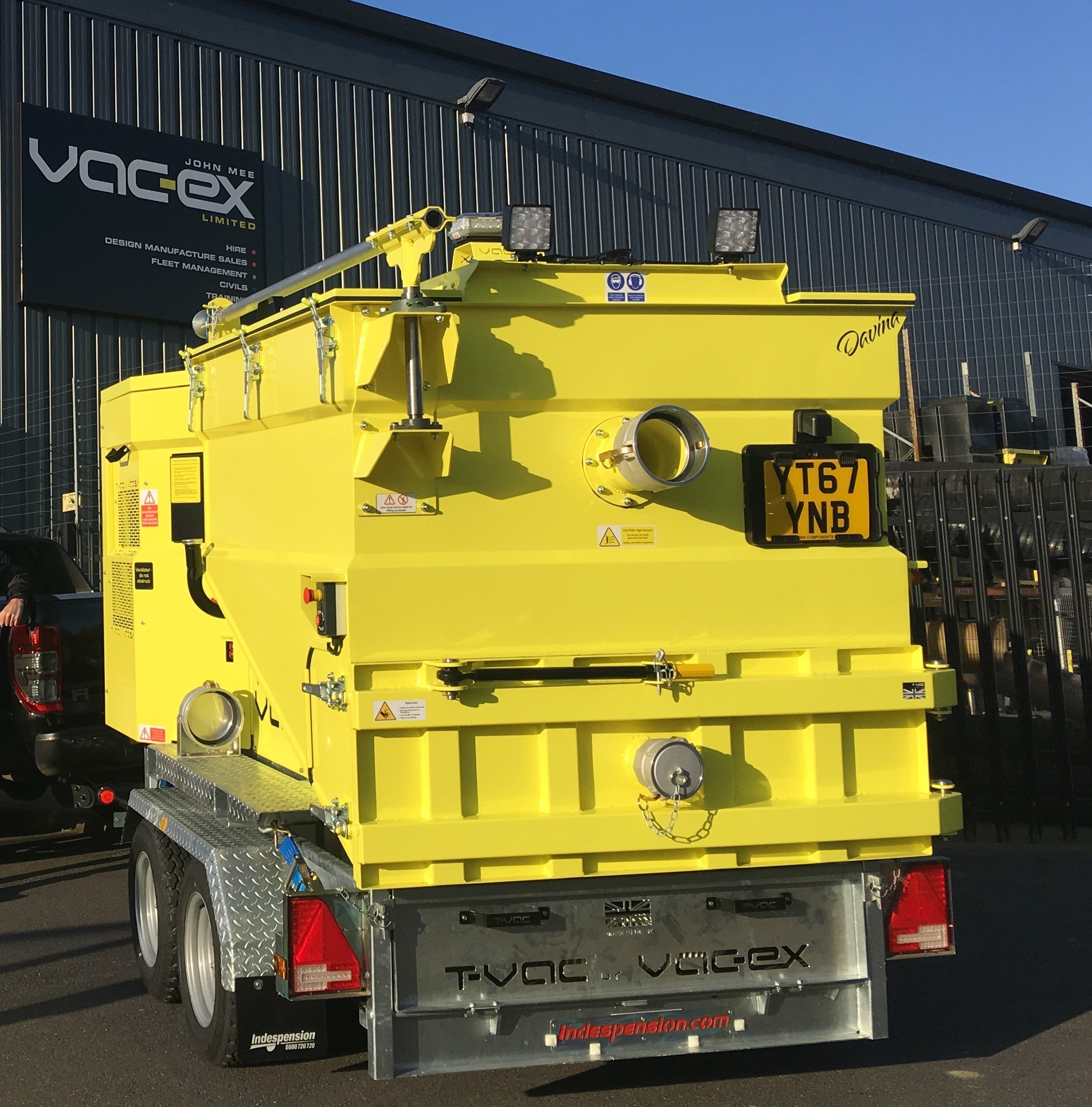

Fully adjustable rear working LED spot lights assist during those dark months or night working.
Roof mounted Amber LED is highly visible from all angles.
Utilising a 150mm/ 6” inlet the T-VAC has industry leading power to size ratio. This inlet can also be reduced down to 125mm/ 5", 100mm/ 4" & 75mm/ 3" if required.

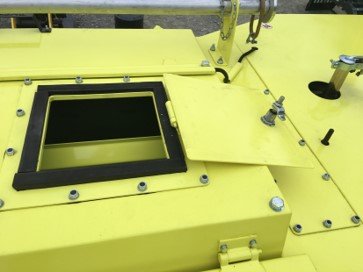

Handles slurries & water with ease. We recommend our top-inlet & porthole system for dedicated more long term usage.
The T-VAC can handle clayey ground but there are lots of variables which can make it difficult. Contact us to discuss your options.

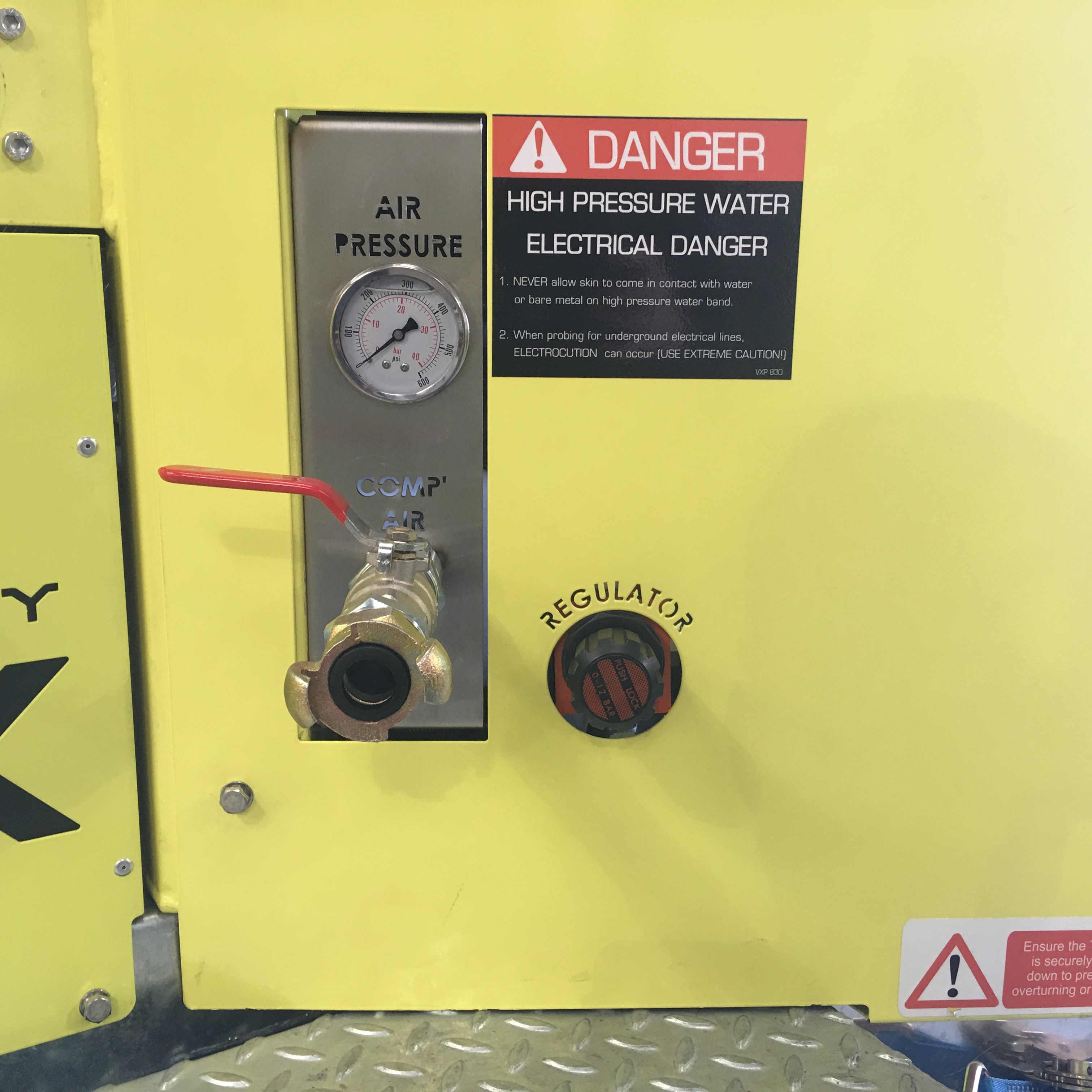

An option to Vacuum Excavate using HP water or compressed air offers the operator better versatility.
A must have option for those who don't have vehicle mounted compressors and want to utilise the AIR-EX lance for dry air excavation.

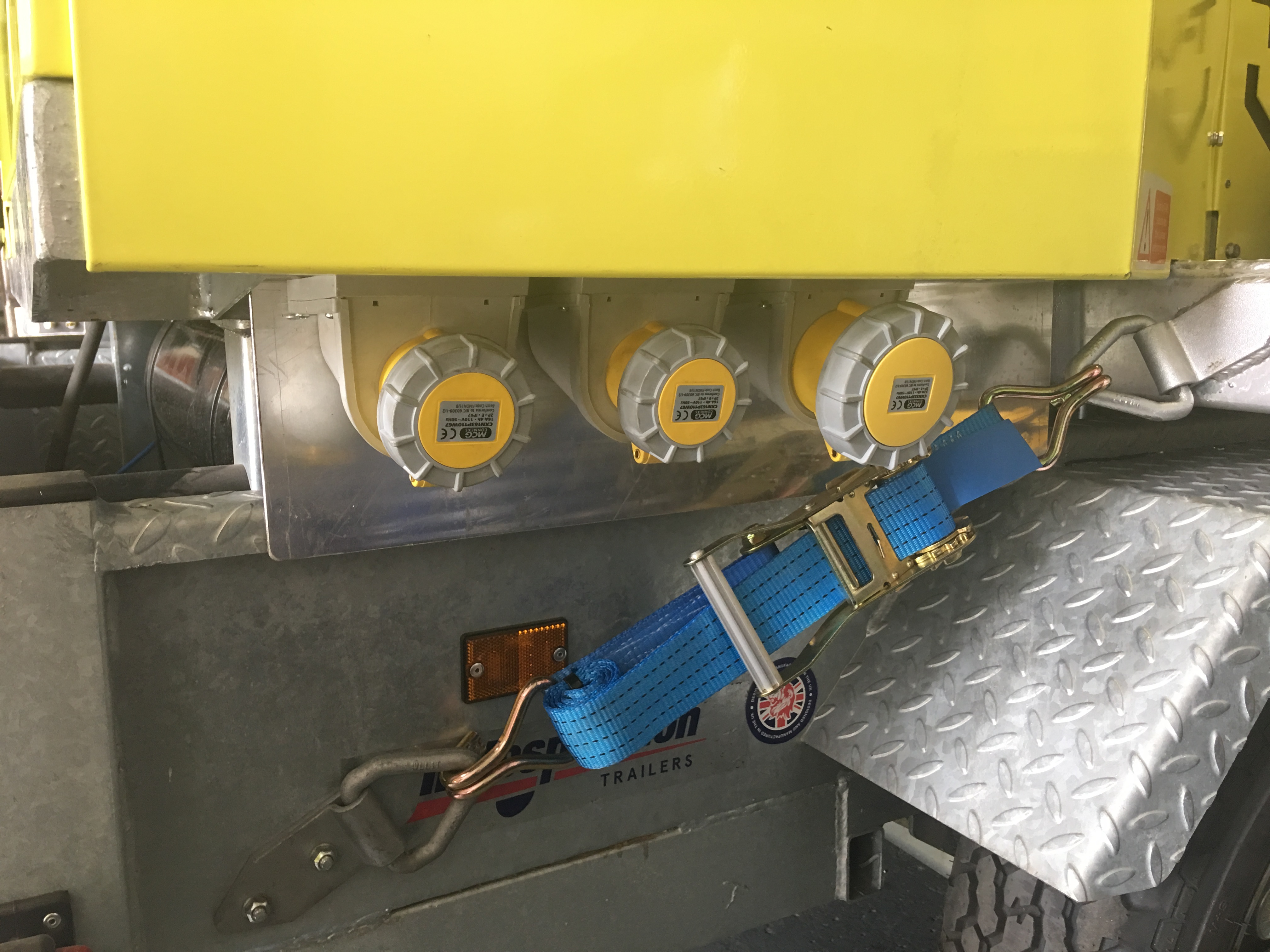

An option which allows additional functionality such as, additional work lighting, pipe fusion, tooling etc.
An option which both improves the off road capabilities and extends the range and functionality of the T-VAC.

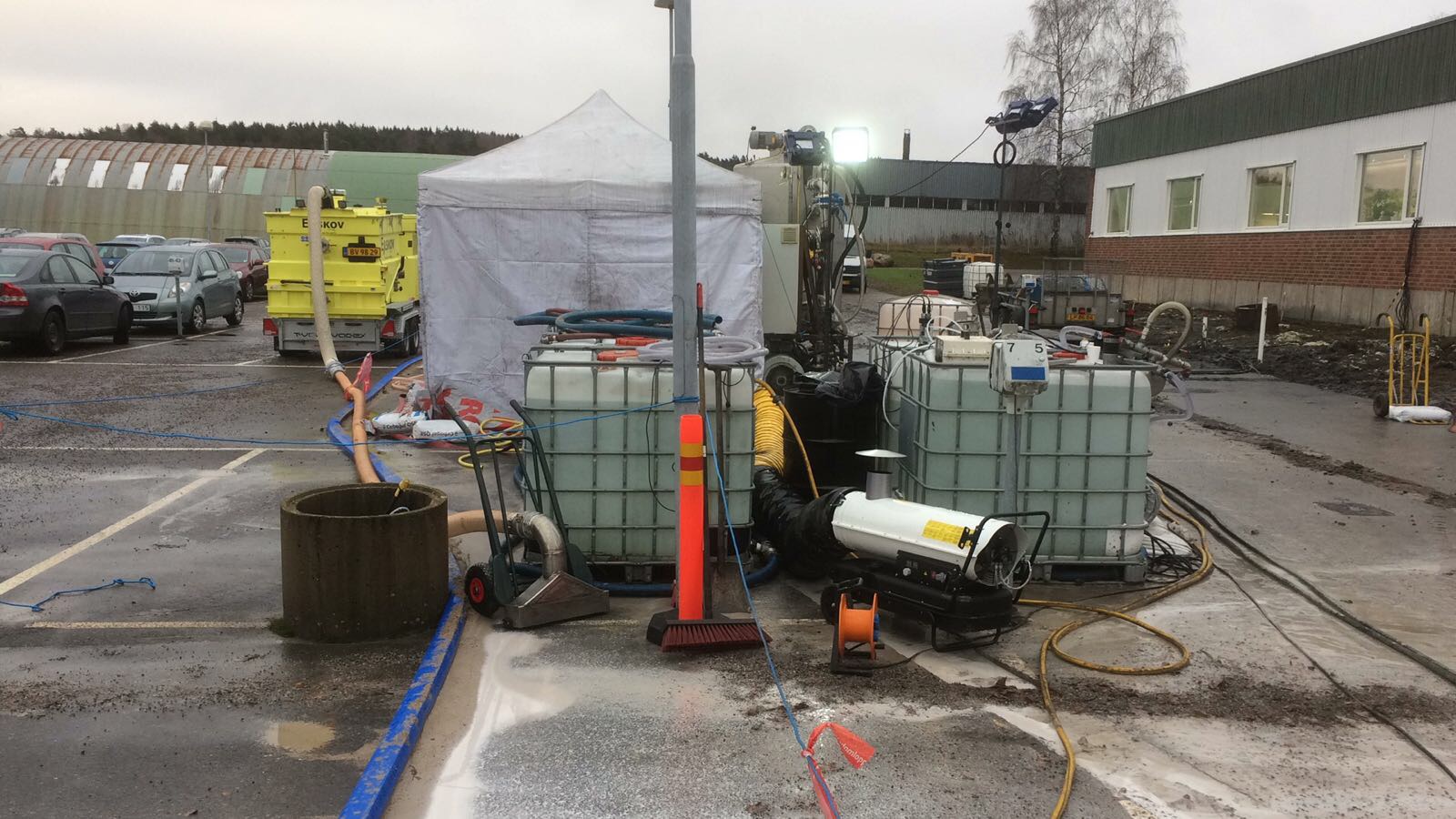

Utilised for extensive or prolonged Hydro-Excavating or connecting alternative debris skips.
