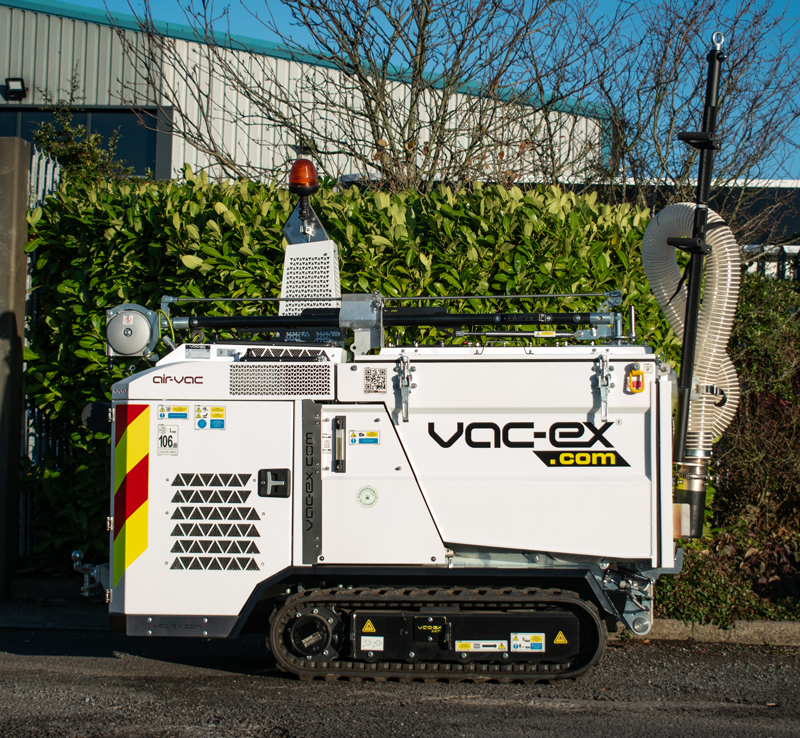

AIR-VAC 2.1 vacuum excavator

The next generation ‘AIR-VAC’ track unit.

The updated AIR-VAC 2 is designed to replace the 2010 unit, retaining the core principles of its predecessor while enhancing its capabilities. Key features include:

Narrow Design: Ideal for navigating tight spaces, the AIR-VAC 2 maintains its slim profile, allowing for easy access to areas that larger units can't reach.
All-Terrain Capability: Built to handle a variety of surfaces, from rugged terrains to smooth floors, ensuring versatility across different environments.
Independent Functionality: The AIR-VAC 2 is engineered with independent functionality, offering flexibility and efficiency for diverse tasks.
Powerful Performance: Despite the compact size, the AIR-VAC 2 is designed to be as powerful as possible, maintaining high performance for effective results in a wide range of applications.

These features ensure that the AIR-VAC 2 is an upgraded yet familiar tool, ready to meet modern demands while staying true to the strengths of the original model

Patent granted GB2572193.

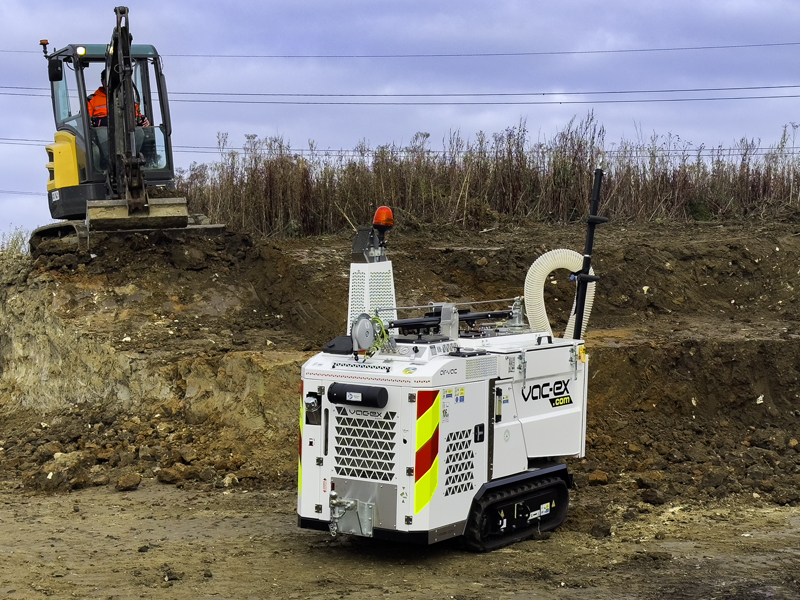

Narrow Trenching

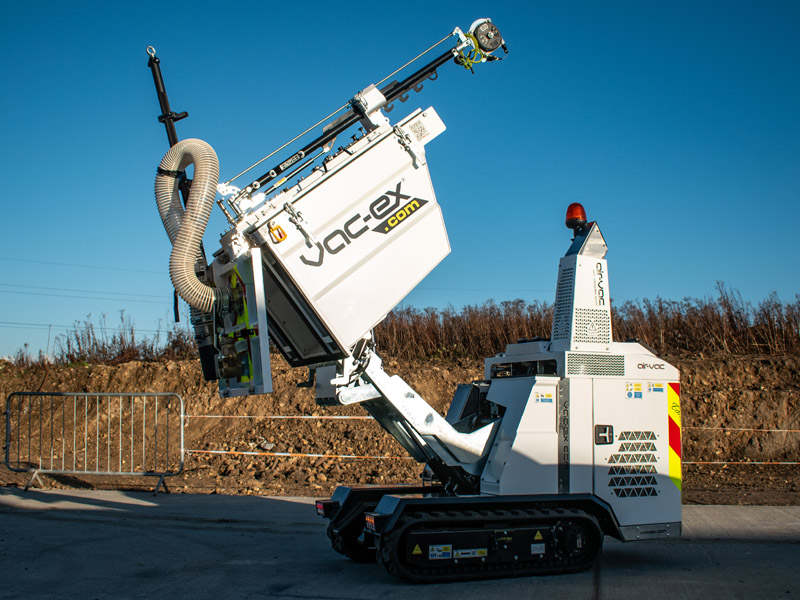

High Tipping

On the move

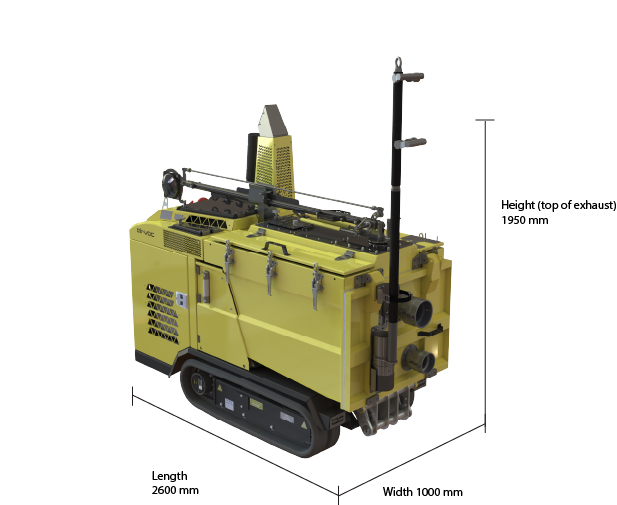

Technical Specifications


Length	2600 mm (102.36 in)
Width	1000 mm (39.37 in)
Height (top of exhaust)	1950 mm (76.77 in)
Height (at min. tipping)	1800 mm (70.87 in)
Height (at max. tipping)	2580 mm (101.57 in)
Weight	1750 kg (3858 lb)
Debris Skip Capacity	0.2 m³ (44 gal)
Hose Inlet Ø	125 mm (5 in)
Vacuum	Single Turbine
Hydraulic PTO A	25 l / min @2175 psi (6.6 gpm @ 150 psi)
Hydraulic PTO B	50 l / min @ 2175 psi (13.2 gpm @ 150 bar)
Machine weight can vary depending on specification
Under our policy of continuous improvement, we reserve the right to change specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine

Idea for the AIR-VAC

The new 2025 face lift AIR-VAC 2 still encompasses all of its recognisable features; narrow, all-terrain, high tip, and very powerful but with improved styling, new features and finishes.

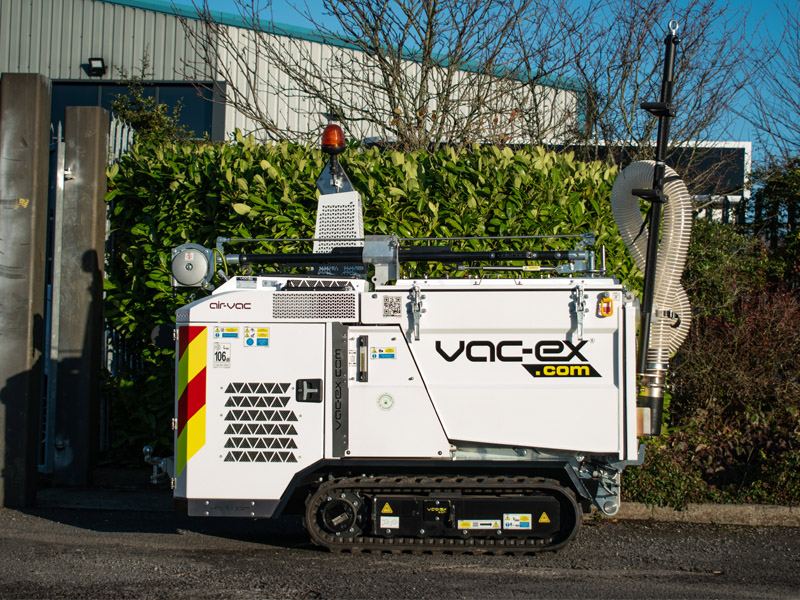

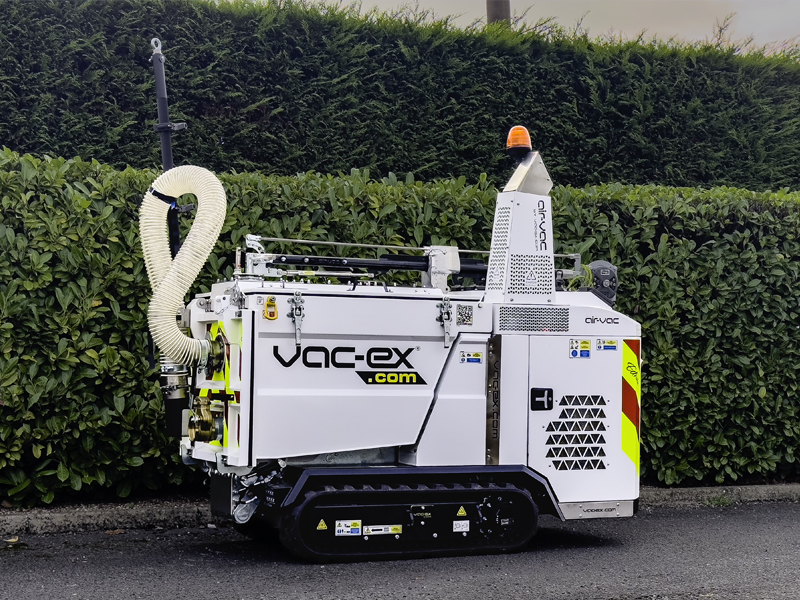

Narrow

With a width of 1000mm, the AIR-VAC 2 is ideal for footpath or narrow access working where operation from the road or implementing traffic management isn't an option.

Tracked Undercarriage

The AIR-VAC 2 is equipped with multi-terrain rubber tracks, eliminating the need for ground mats and saving valuable operator time.

Its 360° rotation allows optimal positioning for both excavation and tipping operations

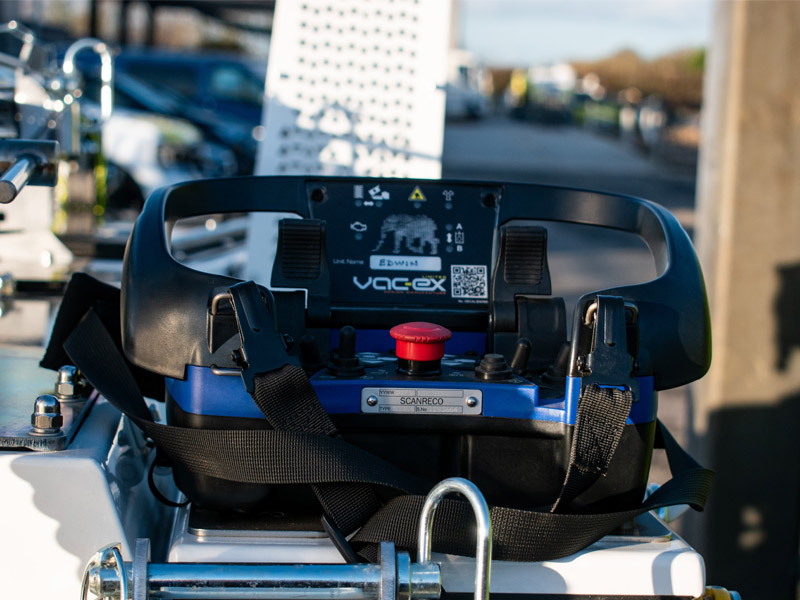

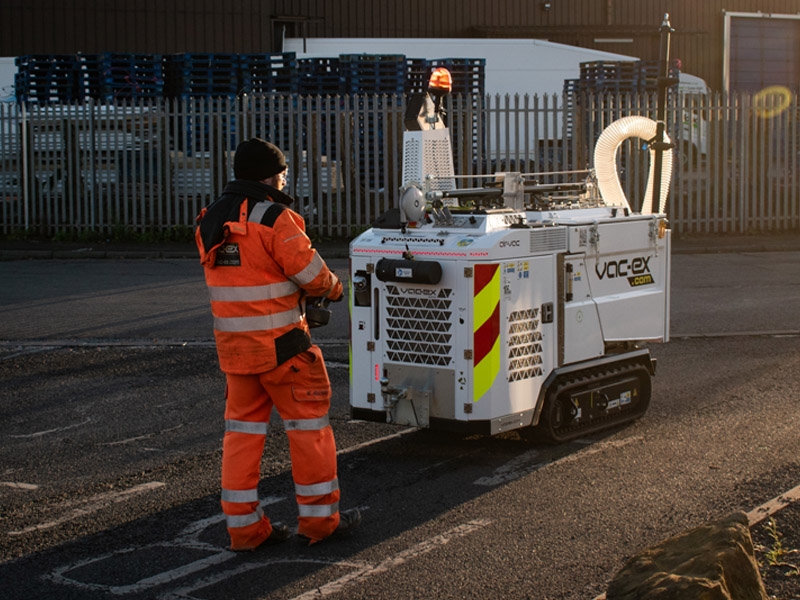

Remote Control

A fully proportional remote-control system enhances both safety and productivity, allowing the AIR-VAC 2 to be operated from safer ground with improved visibility and reduced vibration exposure.

Includes a built-in remote control battery charger.

Lightweight but Robust

At 1750kg the AIR-VAC 2 has great weight distribution for off-road, tipping and loading operations.

Easy to Mobilise

With a gross tare weight of 1750 kg, the AIR-VAC 2 unit is exceptionally easy to mobilise to site, utilising existing fleet vehicles.

Easy Loading & Securing

Mobilising the AIR-VAC 2 to site quickly and safely is paramount. Utilising the rear trailer coupling and convenient tie-down points makes it just that.

Exterior Design

The AIR-VAC 2 design allows easy corporate colours and decals to be presented.

Debris Skip & Tipping

A large, hinged debris door and inclined skip with plastic / stainless steel lined interior ensures the stickiest of material exit the skip with ease.

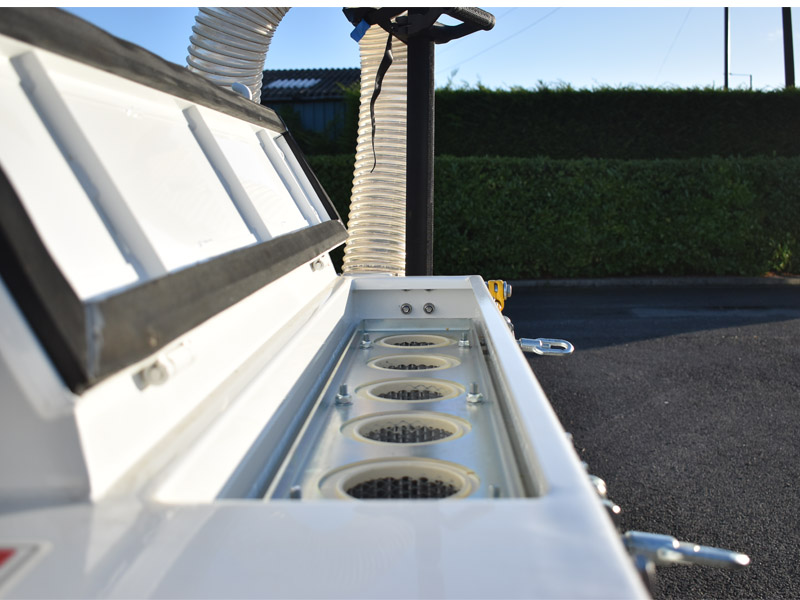

Cleaning the Filters

Couldn’t be easier. The AIR-VAC 2 design allows quick, almost dust free clean-off. The filters can also be quickly removed for power washing.

Easy access to on-board VAC-FILTERS minimising dust and debris and allowing for repeated use between loads without the loss of power

Hydraulic PTO Power

A dual circuit hydraulic system allows for multi-tooling to be used such as breakers, cut-off saws, corers, tampers to name a few.

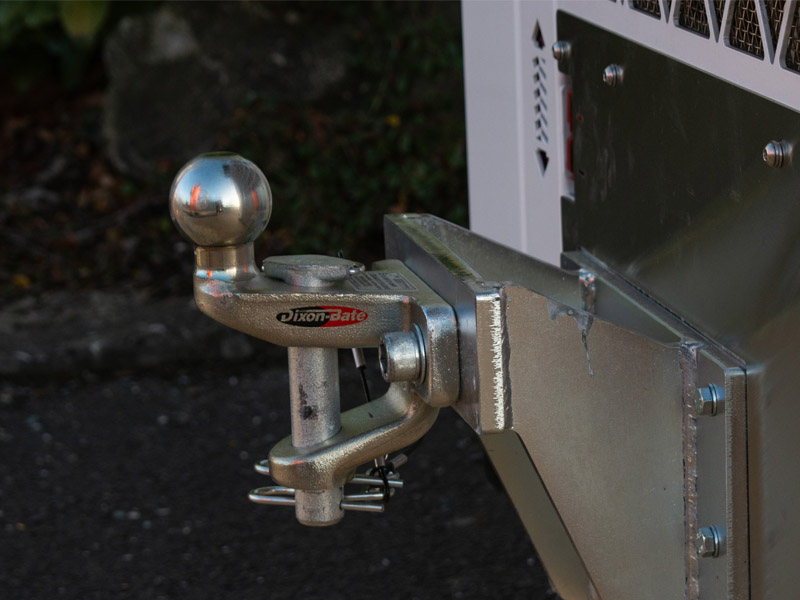

Tow Bar

The tow bar ensures that you can manoeuvre your compressor or trailer to its next position on site.

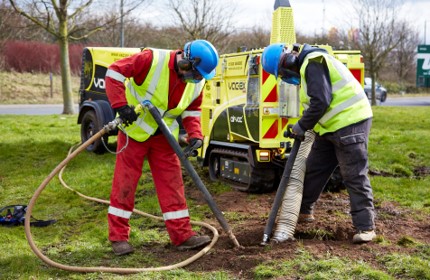

Semi-Flexible Vac Pipe

With a 125mm / 5” inlet Ø , the AIR-VAC offers an industry-leading power-to-size ratio.

Manual Support Arm

The manual arm offers safe, precise excavation

E-Stop

Positioned centrally on the AIR-VAC2, it allows for quick and easy access

Lighting

LED lighting is a key feature of the AIR-VAC 2.1. Amber warning, working, and tracking LED lights are used to alert and inform operatives and others of the AIR-VAC's presence.

Multi-Stage Filtration

Allowing for repeated use between loads without the loss of power

Non-Conductive Excavation

The excavation tools are made from a combination of aluminium and PE plastic, offering a level of protection against electric shock hazards.

Zero H.A.V.S.

All the VAC-EX Tooling is vibration tested with HAVI®. Please contact us for more information.

Dry Excavation

The AIR-VAC2 is primarily designed for dry excavation but can also be used for hydro-excavation, slurries, and water.

Rail Ballast

Handles Rail Ballast with ease.

Clays

The AIR-VAC2 can handle clayey ground, although it may operate more slowly. Contact us to discuss how to get the best results.

Slurries

Efficiently excavates slurries with exceptional power.

Depths

Whilst most excavations are in the region of 1.5m, the AIR-VAC can operate at 6m depth.

Efficiency

While power is a key requirement, we believe in using it efficiently. On average, users consume no more than 20 liters per day.

Top Inlet & Porthole

Designed for extended hydro-excavating, it also facilitates easier connection to auxiliary debris skips.

AIR-EX Lance

The industry-leading tool for ground decompaction and clearing spoil from underground assets, powered by an external towed or vehicle-mounted compressor.

Filter Blaster

Enables safe operation and handling of compressed air while cleaning the filters.

Top Inspection Hatch

Provides quick and easy access to the debris tank for inspection and cleaning.

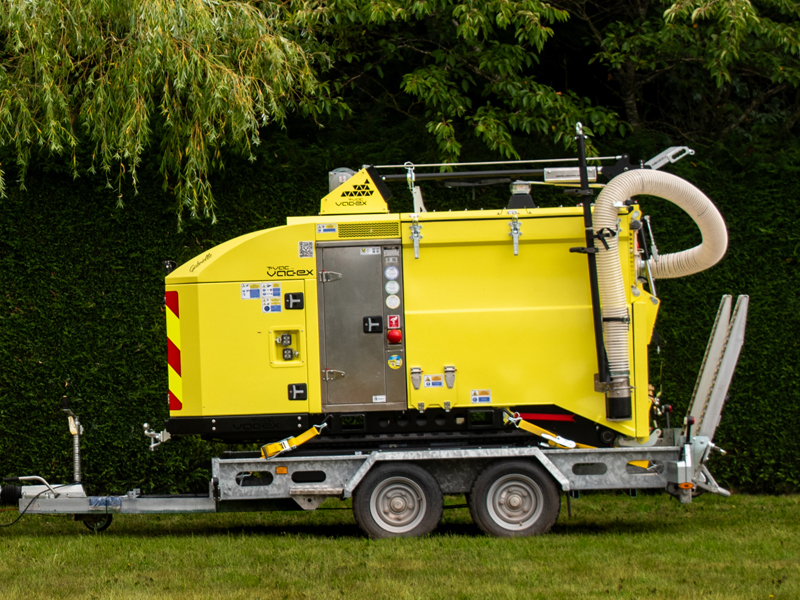

Trailer

Our modified Indespension trailer is a reliable and proven tool for towing plant and equipment.
